Chromium Nitride (CrN) PVD Coatings

Introduction

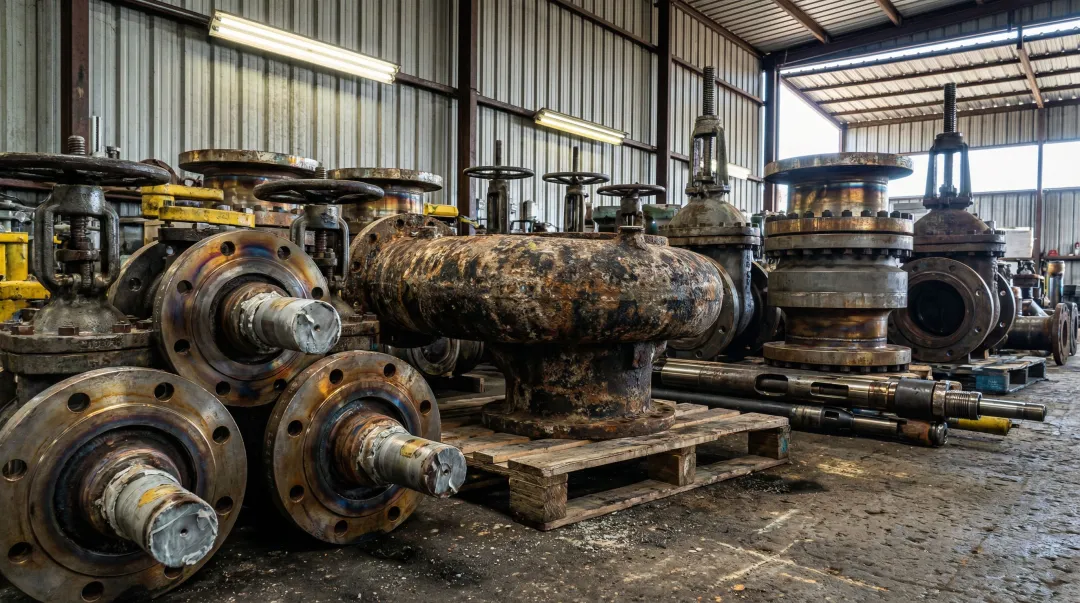

Industrial engineers face a costly, recurring challenge: components operating in high-friction, high-temperature, or corrosive environments fail prematurely, triggering unplanned downtime and expensive replacements. A pump valve in a petrochemical refinery corrodes through in months instead of years. A plastic injection mold requires refurbishment after just weeks of production. An aerospace actuator rod seizes due to galling wear.

Chromium nitride (CrN) PVD coatings offer a proven solution. By depositing a dense, hard ceramic layer just microns thick, CrN protects base metals from wear, heat, and chemical attack. Research shows CrN coatings reduce wear rates significantly while maintaining dimensional precision—translating directly to longer component life and lower maintenance costs across demanding industrial applications.

This guide covers what CrN is, its standout properties, how it's applied via Physical Vapor Deposition (PVD), and which industries benefit most—giving you the technical foundation to specify the right coating for your critical components.

TLDR

• Hard ceramic thin-film coating applied via PVD, CrN shields metal parts from wear, heat, and corrosion in demanding industrial environments
• Delivers 1750–2500 HV hardness and thermal stability to ~700°C — outperforming TiN and most standard hard coatings on corrosion resistance
• Applied at 1–10 microns thickness, preserving tight tolerances on precision-machined components

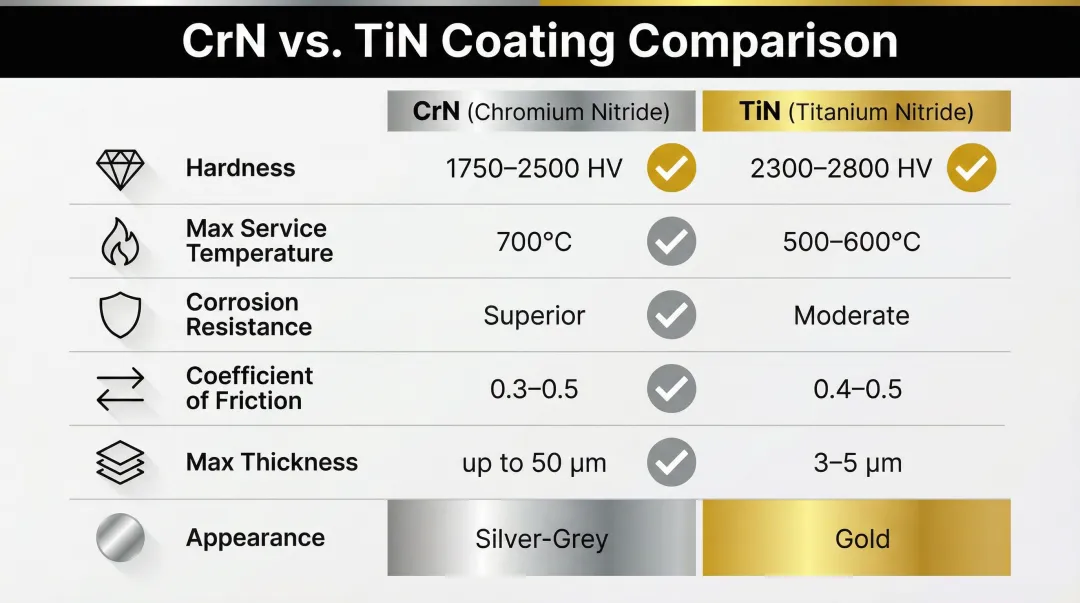

• Outperforms TiN in corrosive, high-temperature, and sliding-contact applications
• Widely used across manufacturing (molds, dies), aerospace, oil & gas, medical devices, and metal forming

What Is Chromium Nitride (CrN)?

Chromium nitride (CrN) is a chemical compound of chromium and nitrogen—a hard, chemically stable ceramic material that occurs naturally in trace amounts in iron meteorites as the mineral carlsbergite, but is industrially synthesized for coating applications.

Two Forms of Chromium Nitride

• Cubic CrN (FCC structure): The primary phase used in industrial PVD coatings. It offers superior hardness, acid/alkali resistance, and thermal stability.
• Hexagonal Cr₂N: A secondary phase with lower corrosion resistance. During high-temperature oxidation, Cr₂N transforms to CrN with a 20% volume expansion that creates porous, non-protective scales, leading to premature coating failure.

PVD process parameters—especially nitrogen partial pressure—are carefully controlled to favor the cubic phase, ensuring maximum performance in industrial environments.

How CrN Differs from Chromium(III) Compounds

That cubic lattice structure also explains a common point of confusion. Structurally, CrN behaves similarly to Cr(III) compounds, but it's classified as an interstitial nitride rather than an ionic chromium(III) salt. Nitrogen atoms occupy spaces within the face-centered cubic chromium lattice, creating a blend of covalent and metallic bonding. This gives CrN unique properties—electrical conductivity and metallic toughness—that purely ionic Cr(III) compounds lack.

Key Properties of CrN PVD Coatings

Hardness and Wear Resistance

CrN coatings achieve 1750–2500 HV hardness (15–29 GPa depending on deposition method), creating a tough barrier against abrasion, galling, and fretting. That puts CrN well above most engineering steels and in range with premium hard coatings.

Academic research confirms that optimized CrN coatings reduce wear rates substantially in demanding tribological applications.

Thermal Stability

CrN maintains its protective structure at temperatures up to approximately 700°C (1300°F), making it suitable for hot-running industrial components like die casting molds, valve seats, and turbine parts. This heat resistance stems from stable Cr-N bond chemistry and the formation of a protective Cr₂O₃ oxide layer at elevated temperatures.

Corrosion Resistance

CrN is insoluble in water and acids, forming a dense passivation layer that shields base metals from chemical attack, hot gases, and oxidizing environments.

Key test results:

• Electrochemical testing in 3.5% NaCl solution shows corrosion current densities as low as 2.28 × 10⁻⁷ A/cm²
• Duplex treatments (plasma nitriding + CrN) survive over 720 hours in ASTM B117 salt spray testing without red rust

These results make CrN a practical choice for petrochemical, oil refining, and marine or offshore environments where wet corrosion is a constant threat.

Low Coefficient of Friction and Anti-Galling

CrN's moderate hardness combined with its anti-adhesive surface properties reduces friction (0.3–0.5 against steel, ~0.2 against polymers) and prevents material transfer between mating surfaces. This is critical for sliding wear applications like:

• Plastic injection molds
• Extrusion dies
• Control valves
• Forming tools

Research shows CrN reduces ejection forces in polypropylene molding by up to 23% relative to uncoated tool steel.

Dimensional Precision (Thin-Film Advantage)

CrN is applied in layers typically 1–10 microns thick, meaning coated parts retain their original geometry and tolerances—a critical advantage for precision-machined components that cannot tolerate dimensional change. Unlike electroplated chrome, which adds measurable bulk, a 1–10 micron CrN film has negligible effect on part dimensions while still providing full surface protection.

How CrN Is Applied: The PVD Process

Physical Vapor Deposition Explained

Physical Vapor Deposition (PVD) is a vacuum-based process where a chromium target is vaporized in the presence of nitrogen gas. The resulting chromium nitride is deposited atom-by-atom onto the substrate surface, forming a dense, strongly bonded thin film.

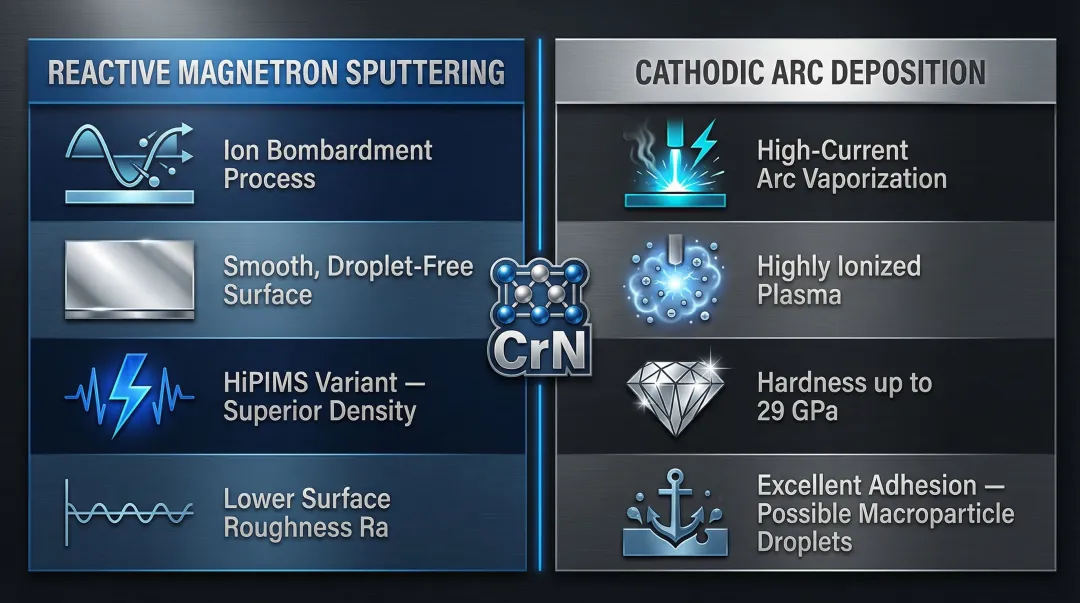

Common PVD Methods for CrN:

• Reactive Magnetron Sputtering: Ion bombardment dislodges chromium atoms from the target, producing smooth, droplet-free coatings. High-Power Impulse Magnetron Sputtering (HiPIMS) delivers superior density and corrosion resistance compared to standard DC sputtering.
• Cathodic Arc Deposition: A high-current electric arc vaporizes the chromium target, creating a highly ionized plasma. This yields higher hardness (up to 29 GPa) and excellent adhesion, but introduces macroparticle "droplets" that can increase surface roughness.
