Introduction
Aluminum's strength-to-weight ratio and naturally forming oxide layer make it a go-to material across industrial sectors. That oxide film, however, is only nanometers thick — and it fails under conditions that industrial operations routinely produce.
Chloride exposure, high-pH cleaners, extreme moisture, and aggressive chemical streams in oil & gas, aerospace, and petrochemical environments break through this passive layer with regularity. Unprotected aluminum components then develop pitting corrosion, crevice corrosion, and erosion corrosion — leading to equipment failures and unplanned downtime.
This guide helps decision-makers evaluate corrosion-resistant coating options for aluminum. It covers the most effective technologies — from anodizing to diffusion coatings — compares their performance under harsh industrial conditions, and outlines clear selection criteria based on operating environment, mechanical demands, and budget.
TLDR:
- Aluminum's native oxide layer fails in chloride, acidic (pH <4), and alkaline (pH >9) environments
- Anodizing offers cost-effective protection but suffers edge cracking and limited chemical resistance
- Diffusion coatings create metallurgically bonded layers that resist both corrosion and wear simultaneously
- Coating selection depends on environment severity, mechanical demands, geometry, and operating temperature
- Design-stage coating selection prevents costly failures in oil & gas, aerospace, petrochemical, and heat exchanger applications
Why Aluminum Corrodes (And Why Its Natural Oxide Layer Isn't Always Enough)
The 5-Nanometer Defense Mechanism
Aluminum's corrosion resistance relies entirely on an aluminum oxide (Al₂O₃) passive film. Upon exposure to oxygen at room temperature, this amorphous layer forms spontaneously, reaching 2–4 nanometers within hours and stabilizing at approximately 5 nm. In neutral, mild environments, it provides moderate protection — but its chemical stability is extremely limited.
The passive film maintains integrity only within a narrow pH range of 4 to 9. Outside this window, rapid dissolution occurs — in strong acids (pH <4) and alkaline solutions (pH >9), the oxide layer destabilizes entirely.
The isoelectric point of this air-formed oxide sits at approximately pH 9.0–9.5. In most aqueous industrial environments (pH <9), the aluminum surface carries a net positive charge that electrostatically attracts aggressive negative anions like chlorides.

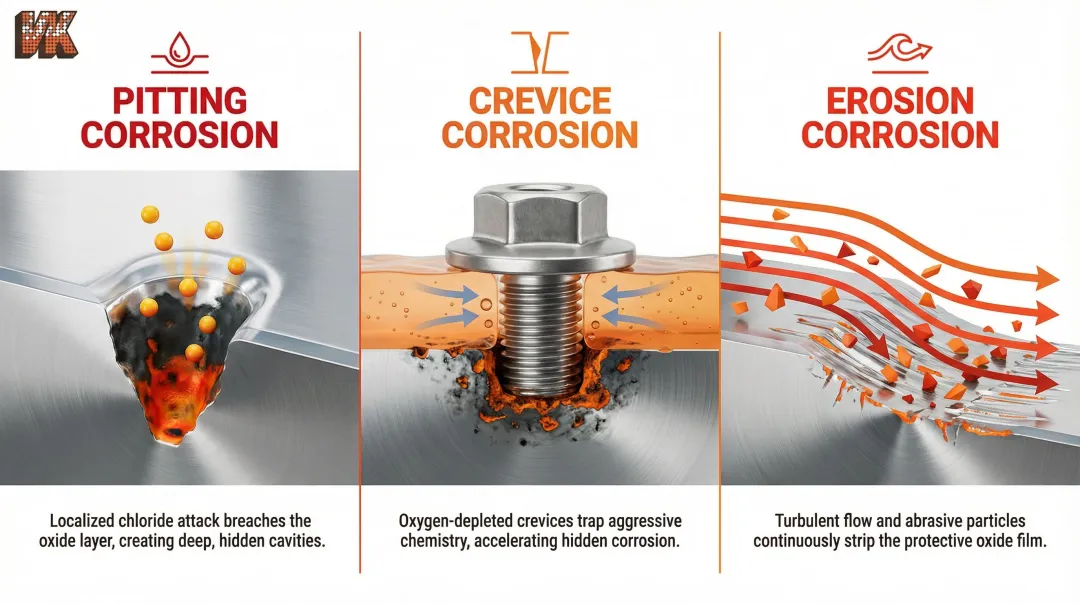

Three Critical Corrosion Mechanisms
Pitting corrosion — Chloride ions adsorb onto the oxide surface, migrate toward the metal-oxide interface, and cause blister rupture. The result: localized cavities that deepen unpredictably. Most common in marine environments, process brines, and chemical plants.
Crevice corrosion — Stagnant microenvironments under gaskets, fastener heads, or deposits restrict oxygen diffusion, creating a differential aeration cell. The crevice shifts acidic with high chloride concentration, and the passive film cannot reform in the confined geometry.
Erosion corrosion — High-velocity fluid flow strips the oxide layer faster than it regenerates. Turbulence and cavitation in pumps, heat exchangers, and hydraulic systems compound the chemical attack with mechanical destruction — especially where abrasive particulates are suspended in the fluid.
The Economic Imperative
The 2016 NACE International (now AMPP) IMPACT study estimated the global cost of corrosion at $2.5 trillion annually, equivalent to 3.4% of global GDP. In the United States alone, the Federal Highway Administration documented direct metallic corrosion costs at $276 billion per year. For industrial facilities, these aren't abstract statistics—they represent real equipment failures, production losses, and safety risks. A single hour of unplanned downtime in oil & gas refining now costs $500,000 or more, making protective coatings a financial necessity for these operations.
Types of Corrosion-Resistant Coatings for Aluminum
No single coating technology is universally optimal. Selection depends on corrosive environment severity, mechanical loading, dimensional tolerances, operating temperature, and budget. Here's how the primary options compare:
Anodizing
Anodizing thickens aluminum's natural oxide layer through an electrochemical process. The component is immersed in an acid bath (typically sulfuric acid) and electrical current is applied, growing a controlled aluminum oxide layer perpendicular to the substrate.
Thickness ranges:
- Type II (standard): 10–25 µm (0.00007–0.0010 inches)
- Type III (hard anodizing): 25–150 µm (0.0005–0.0045 inches)
Benefits:
- Preserves metallic appearance
- Electrically insulating
- Cost-effective for moderate environments
- Excellent wear resistance (Type III)
Limitations:
- Open columnar pores must be sealed (boiling water, nickel acetate, or dichromate) to achieve corrosion resistance — sealing Type III hardcoats reduces abrasion resistance
- Sharp corners create voids and micro-cracks; MIL-PRF-8625F mandates minimum radii (e.g., 1/8-inch radius for 0.004-inch coating) to prevent uncoated edges
- Brittle coatings cannot flex with the substrate; thicker layers severely reduce aluminum fatigue life
- Aluminum oxide dissolves rapidly above pH 9, ruling out anodized aluminum for alkaline process streams
Chromate Conversion Coatings
Chromate conversion creates a passive chromium oxide film with self-healing properties, historically effective for aerospace applications due to its corrosion inhibition and paint adhesion characteristics.
Regulatory status — critical update:Hexavalent chromium (Cr(VI)) — the active agent in traditional chromate coatings — faces imminent regulatory elimination. The EU REACH framework is moving Cr(VI) from authorization to strict restriction, with implementation expected by late 2027 or early 2028. RoHS Directive 2011/65/EU caps hexavalent chromium at 0.1% by weight in homogeneous materials.
In the U.S., OSHA mandates a Permissible Exposure Limit of 5 µg/m³ with extensive engineering controls and hazardous waste protocols.
The aerospace industry is transitioning to MIL-DTL-5541F Type II (trivalent chromium process / TCP) and chromium-free alternatives. Engineers specifying chromate conversion coatings must verify regulatory compliance and plan for supply chain transitions.
Paint and Powder Coatings
Paint and powder coatings provide cost-accessible barrier protection with broad color and finish options. They're applied as liquid or electrostatically charged powder, then cured in ovens.
Limitations for industrial applications:
- Surface-level protection rather than metallurgically bonded layer
- Soft, susceptible to scratch and abrasion
- Application inefficiencies (solvent evaporation, oven-cure byproducts)
- Poor performance in high-wear or high-temperature environments
- Require periodic reapplication as coatings degrade
Suitable for atmospheric exposure and aesthetic applications, but inadequate for aggressive chemical or mechanical environments.
Electroless Nickel Plating
Electroless nickel deposition is an autocatalytic chemical process that deposits uniform thickness on complex geometries. Inner diameters, recesses, and sharp edges — areas where electroplating and anodizing struggle — are no obstacle.
Advantages:
- Consistent thickness regardless of geometry
- Good hardness (400–500 Knoop for mid-phosphorus)
- Moderate corrosion resistance
- Suitable for tight dimensional tolerances
Limitations:
- Performance degrades at elevated temperatures (>260°C / 500°F)
- Inadequate in strongly acidic or alkaline media
- Coating stress can cause cracking on thin substrates
- Higher cost than anodizing or paint
Diffusion Coatings (Aluminizing / CVD)
Diffusion coatings differ from barrier coatings in a critical way. Rather than sitting on top of the substrate, Chemical Vapor Deposition (CVD) aluminizing creates an intermetallic compound directly at the metal surface through high-temperature diffusion.
Process overview:Aluminum-bearing powder mixes are applied or packed around the substrate. At elevated temperature inside a furnace (typically 800–1000°C), aluminum diffuses into the base metal surface, forming stable intermetallic compounds. The result is a metallurgically bonded layer that cannot delaminate, peel, or chip — it is part of the substrate itself.
Advantages:
- No delamination risk — the coating is metallurgically bonded, not deposited on top
- Uniform protection on complex geometries, including recesses and internal surfaces
- Stable performance under thermal cycling and mechanical stress
- Long service life without periodic reapplication
That bond also means dimensional changes are predictable and measurable — a key factor when tight tolerances matter in demanding industrial service.
How Diffusion Coatings Deliver Superior Corrosion and Wear Resistance for Aluminum

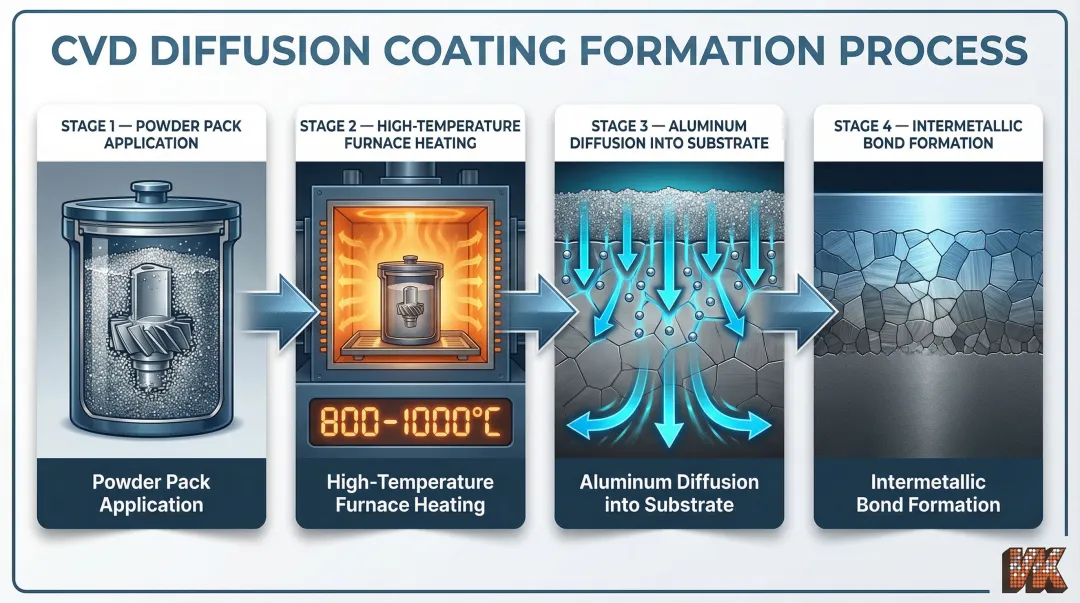

The CVD Aluminizing Mechanism
Chemical Vapor Deposition aluminizing works through solid-state diffusion at elevated temperature. Components are packed or coated with aluminum-bearing powder formulations, then heated in a controlled-atmosphere furnace. At process temperature, aluminum atoms diffuse into the substrate surface, forming intermetallic compounds such as enriched aluminide layers on alloy substrates or iron aluminide (FeAl) on steel.
The resulting surface is chemically inert to many corrosive media that destroy conventional coatings. Unlike barrier coatings that rely on physical isolation, diffusion-coated surfaces form a dense, adherent α-Al₂O₃ scale during service that acts as a continuous diffusion barrier against oxygen, sulfur, and corrosive process chemicals.
Combined Corrosion and Hardness Performance
Diffusion coatings deliver a unique combination: extreme hardness alongside corrosion resistance. The process achieves surface hardness of 1500 Knoop (RC75+ equivalency) — harder than tungsten carbide cutting tools — providing simultaneous resistance to corrosive attack and abrasive/erosive wear.
This dual protection matters most where components face both chemical aggression and mechanical loading. Anodizing offers wear resistance but fails chemically; paints resist corrosion but scratch easily. That performance gap is exactly what the environments below expose.
Performance in Demanding Environments
High-Temperature Oxidation:Aluminide coatings form a dense α-Al₂O₃ scale that dramatically reduces oxidation rates. Comparative testing shows oxidation rate constants (a measure of how quickly a metal gains mass from oxygen exposure) orders of magnitude lower than uncoated equivalents, preventing mass gain and substrate degradation at elevated temperatures.
Sulfidation and H₂S Resistance:In hydrogen sulfide environments common in oil refining and sour gas processing, bare aluminum develops irregular pitting and aluminum sulfide corrosion products. Aluminide diffusion coatings provide a physical barrier to sulfur, preventing metal dusting and sulfidation by maintaining an unreactive oxide surface layer.
Chloride and Process Chemical Exposure:The stable intermetallic surface resists chloride penetration and maintains integrity in acidic process streams where aluminum's native oxide would fail catastrophically.
Customization and Scalability
On-site powder mix formulation allows coatings to be precisely tuned to the base material and service environment. Variables including aluminum concentration, activator chemistry, and process temperature are adjusted to optimize coating properties for specific applications.
Large-capacity furnaces extend this to industrial scale. VaporKote's facilities process parts up to 68 inches in diameter, making diffusion coatings viable for heat exchangers, large structural components, and bulk industrial parts that exceed the capacity of most conventional coating processes.

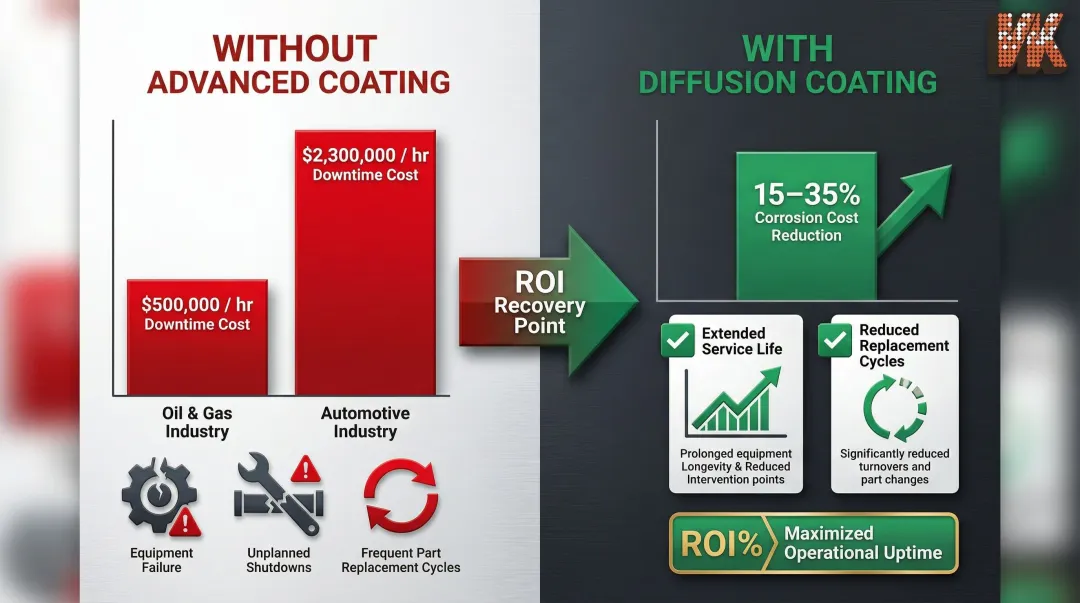

Long-Term Cost Economics
Diffusion coatings extend service life by targeting both primary degradation mechanisms at once:
- Corrosion resistance prevents chemical attack in aggressive process environments
- Wear resistance reduces surface loss from abrasion, erosion, and mechanical loading
- Combined protection means fewer replacement cycles and less unplanned downtime
Unplanned downtime costs $500,000+ per hour in oil & gas and $2.3 million per hour in automotive manufacturing. At those rates, ROI on advanced coatings is recovered in a fraction of a single avoided failure. The NACE IMPACT study reinforces this: implementing available corrosion control practices saves 15–35% of total corrosion costs, translating to measurable operational savings on critical aluminum components.
How to Choose the Right Corrosion-Resistant Coating for Your Aluminum Application
Four Key Decision Variables
1. Corrosive Environment Severity:
- Mild/atmospheric: Anodizing or paint may suffice
- Immersion/moisture: Sealed anodizing or electroless nickel
- Chemical exposure (acids, alkalis, chlorides): Diffusion coatings
- High-temperature oxidation/sulfidation: Diffusion coatings
2. Mechanical Demands:
- Low wear: Paint or standard anodizing
- Moderate wear: Hard anodizing (Type III) or electroless nickel
- High wear + corrosion: Diffusion coatings
- Erosion/abrasion: Diffusion coatings
3. Dimensional and Geometric Constraints:
- Complex geometry, tight tolerances: Electroless nickel or diffusion coatings
- Sharp corners/edges: Avoid anodizing (requires radii)
- Large components (>24" diameter): Diffusion coatings (verify furnace capacity)
- Thin sections: Avoid electroless nickel (coating stress)
4. Operating Temperature Range:
- <100°C: Any coating suitable
- 100–260°C: Anodizing or diffusion coatings
- >260°C: Diffusion coatings only
Practical Comparison Summary
| Coating Type | Corrosion Resistance | Wear Resistance | Max Service Temp | Dimensional Impact | Relative Cost |
|---|---|---|---|---|---|
| Anodizing (Type II) | Medium | Low-Medium | 200°C | +10–25 µm | Low |
| Anodizing (Type III) | Medium | High | 200°C | +25–150 µm | Medium |
| Chromate Conversion | Medium | Low | 150°C | <1 µm | Low |
| Paint/Powder | Low-Medium | Low | 150°C | +50–200 µm | Low |
| Electroless Nickel | Medium-High | Medium-High | 260°C | +10–50 µm | Medium-High |
| Diffusion Coatings | Extreme | Extreme | >800°C | +15–75 µm | Medium-High |
Alloy-Specific Considerations
2xxx (Copper-bearing) and 7xxx (Zinc/Copper) Series:
- Highly susceptible to pitting and intergranular corrosion
- Cu-rich intermetallics act as cathodic sites, driving localized dissolution
- Difficult to anodize; resulting oxide is softer with lower corrosion resistance
- MIL-PRF-8625F restricts Type III hardcoats on alloys with >5% copper
- Require specialized pretreatments or advanced diffusion coatings
5xxx (Magnesium) Series:
- Excellent marine corrosion resistance
- Sensitization risk if Mg >3.5% and exposed to >65°C
- Generally compatible with all coating types
6xxx (Magnesium-Silicon) Series:
- Moderate corrosion resistance
- Excellent anodizing response
- Good coating compatibility across all technologies
Always confirm coating compatibility against your specific alloy designation — the difference between a 2024 and a 6061 part can determine whether a given process achieves its rated performance.
Early Integration at Design Stage
Coating selection belongs in the design phase, not bolted on at the end. Consider:
- Geometry: Provide drainage, generous edge radii, avoid crevices
- Alloy selection: Match alloy corrosion resistance to coating capabilities
- Dimensional budgets: Account for coating thickness in tolerances
- Service environment: Specify coatings based on actual operating conditions
Involving a coating specialist early — particularly for complex geometries or severe service environments — reduces iterations and catches specification gaps before they become fabrication problems.
Industry Applications: Where Corrosion-Resistant Aluminum Coatings Are Critical

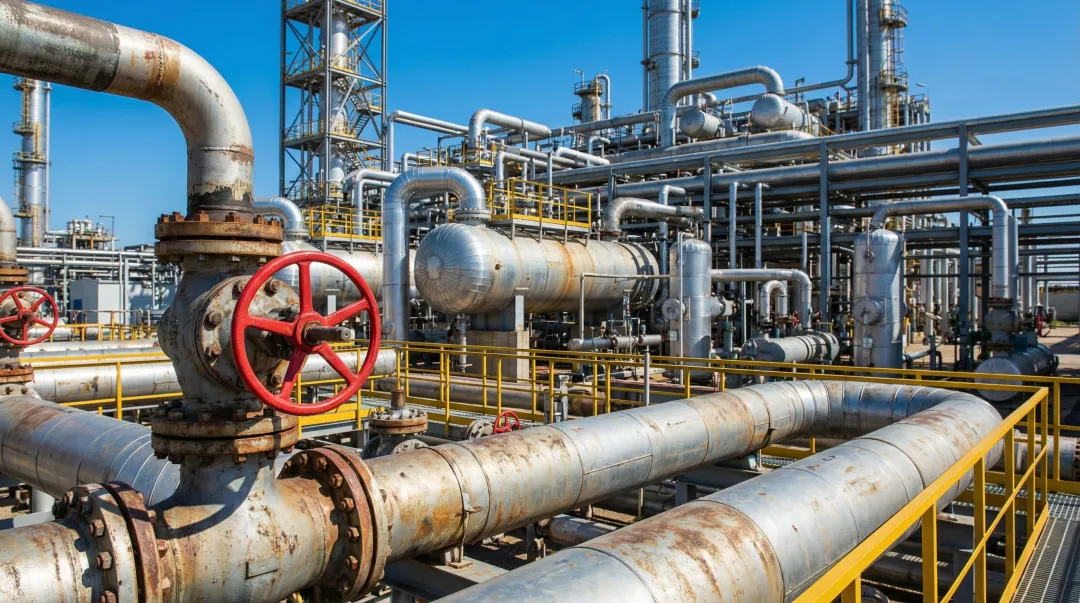

Oil & Gas / Oil Refining
Components face hydrogen sulfide (H₂S) in sour gas environments, chloride-laden process streams, and aggressive process chemicals. Bare aluminum in H₂S develops irregular pitting and aluminum sulfide corrosion products. Chlorides penetrate the passive film, causing rapid localized attack.
Critical applications include:
- Valves and process piping
- Heat exchanger components
- Downhole equipment
Petrochemical Processing
Exposure to aggressive solvents, acids, and caustic media. Because aluminum is amphoteric, alkaline process streams (pH >9) dissolve the protective oxide layer, leading to catastrophic uniform corrosion. Reactor vessels, distillation columns, and process equipment require coatings that maintain integrity across extreme pH ranges.
Aerospace
Components face altitude temperature cycling and severe marine/atmospheric chlorides. Salt fog testing (ASTM B117) benchmarks coating performance for aircraft structures, landing gear, fasteners, and engine components. The regulatory transition away from hexavalent chromium is driving adoption of TCP and diffusion coating alternatives.
Heat Exchanger Manufacturing
Aluminum fins and tubes suffer from fluid immersion corrosion, thermal fatigue, and localized pitting under fouling deposits (crevice corrosion). Coatings must resist both corrosion and thermal cycling without delamination across these common installations:
- Power generation
- Chemical processing
- HVAC systems
Manufacturing, Mining, and Agriculture
Equipment faces abrasive particulates combined with moisture and chemical exposure. Mining crushers, agricultural implements, and manufacturing machinery experience erosion-corrosion that continuously strips passive oxide layers. Coatings that handle both corrosion and wear simultaneously outperform single-function coatings on both fronts.
The Downtime Cost Reality
Coating failure on a critical aluminum component doesn't just mean replacement cost — it triggers unplanned downtime, production losses, and potential safety incidents. General manufacturing downtime runs $125,000–$260,000 per hour; heavy industry sectors like mining and steel average $187,500 per hour. At those rates, coating selection isn't a materials decision — it's a risk management decision.
What to Look for in a Corrosion-Resistant Coating Provider
Technical Credentials That Matter
Separate serious industrial coating providers from commodity shops by verifying:
Standards Adherence:
- Compliance with recognized engineering standards (ASTM, ASME, SAE, API)
- Documented quality management systems
- Process certifications specific to your industry
Metallurgical Expertise:
- Metallurgical analysis and certification of coatings
- Ability to formulate custom coating mixes for specific base materials and service environments
- Testing protocols that verify coating performance under operational conditions
Capacity and Capability:
- Proven experience with large or complex components
- Processing equipment sized and documented for your component requirements
- Integration of coating with machining, heat treatment, and manufacturing services
VaporKote, for example, has adhered to ASTM, ASME, SAE, and API engineering codes since 1987 — providing metallurgical certification as part of every process and running furnaces capable of handling components up to 68 inches in diameter. That combination of standards compliance and physical capacity is worth asking any provider to match.
Long-Term Partnership vs. Transactional Vendor
A qualified coating provider evaluates the entire component lifecycle:
- Recommends alloys compatible with coating processes and actual service conditions
- Matches coating technology to the operating environment — not generic application categories
- Coordinates coating schedules with manufacturing, machining, and assembly timelines
- Supports field performance monitoring and failure analysis after deployment
This lifecycle involvement reduces coating failures in service and cuts the hidden costs of repeat treatments or early component replacement. Ask prospective providers how they handle failure analysis — the answer tells you quickly whether you're talking to a partner or a vendor.
Frequently Asked Questions
What is the best corrosion protection for aluminium?
For mild atmospheric exposure, anodizing is often sufficient. In aggressive chemical, marine, or high-wear industrial environments, diffusion coatings (aluminizing via CVD) deliver the most durable combined corrosion and wear resistance — making them the preferred choice when failure isn't an option.
Does aluminum need a corrosion-resistant coating?
While aluminum forms a natural oxide layer, this passive film is insufficient in environments with chlorides, acids, high-pH chemicals, or abrasive conditions. Engineered coatings are essential for aluminum components used in industrial, marine, or chemical processing applications.
How long does a corrosion-resistant coating on aluminum last?
Service life depends on coating type and operating conditions. Paint-based barrier coatings typically require reapplication every 2–5 years in industrial or outdoor environments. Metallurgically bonded diffusion coatings outlast conventional options by 3–5x or more, often eliminating the need for mid-cycle replacement.
What is the difference between anodizing and diffusion coating for aluminum?
Anodizing grows an aluminum oxide layer through an electrochemical process. Diffusion coatings (CVD aluminizing) create an intermetallic compound bonded into the metal itself — making them harder, more durable, and resistant to delamination.
Which industries benefit most from corrosion-resistant coatings for aluminum?
Oil & gas, petrochemical, aerospace, heat exchanger manufacturing, mining, and pulp & paper sectors benefit most. These industries face aggressive chemical, thermal, and abrasive service conditions where aluminum corrosion coatings are critical to equipment reliability.
Can corrosion-resistant coatings also improve wear resistance on aluminum?
Not all coatings offer both properties. Paints and standard anodizing improve corrosion resistance but are soft and scratch-prone. Diffusion coatings like CVD aluminizing achieve extreme hardness alongside corrosion resistance, making them the preferred solution for components subject to both threats.
